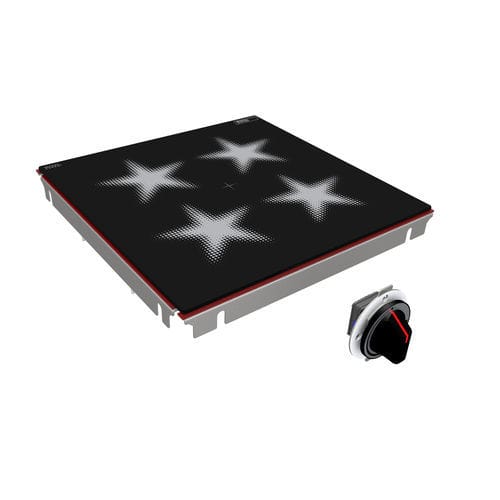

电磁感应灶台 3913

专业4眼嵌入式

Overview
感应灶通过电磁场在锅底直接产生热量，仅在放置兼容锅具时工作，提供快速且高效的加热。PREMIUM 系列集成 SLIDECONTROL 操作界面与多区检测，适用于单锅操作及高密度生产烹饪场景。

Benefits

• 专利 SLIDECONTROL 技术，实现无级功率调节
• 锅具类型检测（材质、直径、功耗特性）
• 采用现代处理器技术的先进控制电子系统
• 自诊断系统用于故障检测与提示
• 多段信息显示，实时反馈状态与设定

Advantages / Further details

• 专利 SLIDECONTROL 技术
  直观的连续功率控制，便于精确调节
• 锅具类型检测
  根据锅具材质和尺寸自动优化感应功率，提升效率
• 控制电子系统
  基于现代处理器技术的快速、可自由调节的控制
• 自诊断系统
  自动检测并提示故障，保障运行可靠性
• 多段信息显示
  清晰显示功率等级、区域状态及错误信息

Single-zone variants (overview)
Eco induction hob 3.5 kW
配备 Eco 圆形线圈和 SLIDECONTROL 的紧凑型感应装置，聚焦式功率输出适用于单锅工作和短时间高功率需求。适配直径 ≤28 cm 锅具，具备中央锅具检测与温度监测功能。

Specifications (summary): Glass 388 x 388 mm; Output 3.5 kW; Connector 1x 230 VAC; Control 1 unit; Monitoring central temperature; Hob: Eco round coil — Ø 260 mm; Stepless power control.

Power induction hob 6 kW
搭载 Power 圆形线圈与 SLIDECONTROL 的高功率单区设备，适合单锅高负荷使用。适配直径 ≤32 cm 锅具，具备中央锅具检测与温度监测。

Specifications (summary): Glass 388 x 388 mm; Output 6.0 kW; Connector 3x 400 VAC; Control 1 unit; Monitoring central temperature; Hob: Power round coil — Ø 300 mm; Stepless power control.

Multifunctional hob 7 kW
两区多功能装置，灵活支持 2–4 锅烹饪；容量与高功率密度适用于生产与出品环节。可容纳四个 Ø16 cm 小煎锅或一个 Ø38 cm 炖锅。具备双区锅具检测与温度监控。

Specifications (summary): Glass 388 x 388 mm; Output 7.0 kW; Connector 3x 400 VAC; Control 1 unit; Monitoring 2-zone temperature; Hob active area 340 × 360 mm; Stepless power control.

Full-coverage large induction hob 9 kW
全覆盖大面积感应灶，提供最大锅具容量与均衡功率分配，适合多小锅同时使用或大锅受热，具有高精度功率计量能力。

Specifications (summary): Glass 388 x 388 mm; Output 9.0 kW; Connector 3x 400 VAC; Control 1 unit; Monitoring full-coverage temperature; Hob active area 380 × 380 mm; Stepless power control.

Double / multi-zone variants (overview)
Double Eco hob 2 x 3.5 kW
两组 Eco 圆形线圈，配备 SLIDECONTROL，适用于并行的单锅高功率任务。

Specifications (summary): Dimensions 356 x 656 mm; Output 2 x 3.5 kW; Connector 1x 230 VAC; Control 2 units; Monitoring central temperature; Hobs: 2 × Ø 260 mm; Stepless power control.

Double Power hob 2 x 6 kW
双通道高功率单锅配置。

Specifications (summary): Dimensions 356 x 656 mm; Output 2 x 6.0 kW; Connector 3x 400 VAC; Control 2 units; Monitoring central temperature; Hobs: 2 × Ø 300 mm; Stepless power control.

Double multifunctional hobs 2 x 7 kW
两组多功能区，支持灵活的多锅布局。

Specifications (summary): Dimensions 356 x 656 mm; Output 2 x 7.0 kW; Connector 3x 400 VAC; Control 2 units; Monitoring 2-zone temperature; Hobs: 2 × 340 × 360 mm; Stepless power control.

Double large hob 2 x 9 kW
两组全覆盖大灶，提供最大产能。

Specifications (summary): Dimensions 388 x 788 mm; Output 2 x 9.0 kW; Connector 3x 400 VAC; Control 2 units; Monitoring central temperature; Hobs: 2 × 380 × 380 mm; Stepless power control.

Double / Triple SLIDECONTROL variants
Double SlideControl hobs 2 x 3.5 kW
为两锅烹饪设计的点菜式 SLIDECONTROL 双区灶。Glass 226 x 388 mm; Output 2 x 3.5 kW; Connector 400 VAC; Control 2 units; Automatic temperature monitoring; Hobs: 2 × Ø 200 mm.

Triple SlideControl hob 3 x 3.5 kW
三区 SLIDECONTROL，适用于三锅操作。Glass 266 x 688 mm; Output 3 x 3.5 kW; Connector 400 VAC; Control 3 units; Automatic temperature monitoring; Hobs: 3 × Ø 200 mm.

Multifunctional hob MS-I-40M (4 zones)
四区多功能单元（4 × 7.0 kW），紧凑布局适合四个 Ø16 cm 小煎锅或 Ø38 cm 锅具。每区有效面积 320 × 320 mm；4 × 双区锅具检测；无级功率控制。

Technical specifications (summary)

• Eco 3.5 kW — Glass 388 x 388 mm; Output 3.5 kW; Connector 1x 230 VAC; Control 1; Monitoring central; Hob Ø 260 mm; Suitable up to Ø 28 cm pans; Stepless control
• Power 6 kW — Glass 388 x 388 mm; Output 6.0 kW; Connector 3x 400 VAC; Control 1; Monitoring central; Hob Ø 300 mm; Suitable up to Ø 32 cm pans
• Multifunctional 7 kW — Glass 388 x 388 mm; Output 7.0 kW; Connector 3x 400 VAC; Control 1; Monitoring 2-zone; Hob 340 × 360 mm; Suitable for four Ø 16 cm pans or Ø 38 cm pot
• Full-coverage 9 kW — Glass 388 x 388 mm; Output 9.0 kW; Connector 3x 400 VAC; Control 1; Monitoring full-coverage; Hob 380 × 380 mm; Suitable for four Ø 20 cm pans or Ø 40 cm pot
• Double/multi variants — Outputs and dimensions vary; Connectors 1x230 VAC or 3x400 VAC; Controls 2–4; Monitoring central, 2-zone or full-coverage
• SLIDECONTROL versions — SLIDECONTROL interface for stepless intuitive power regulation; available with 1, 2 or 3 SLIDECONTROL zones
