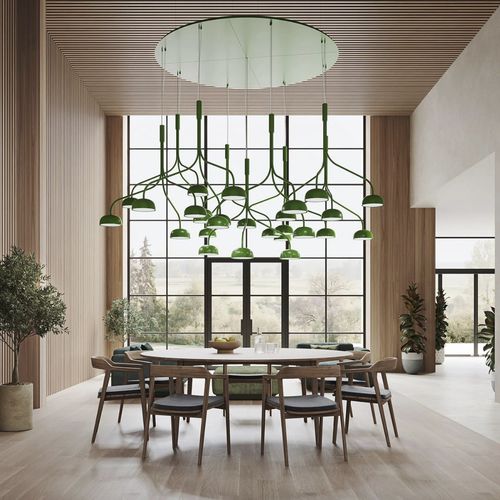

现代顶灯 CURVE CLUSTER METAL

环形弯曲金属

Curve Cluster 金属灯罩
表面处理
灯臂和灯罩为喷漆金属。织物线缆。可按要求提供其他线缆颜色。

LED 信息
系统功率 15x10W 或 27x10W。灯具光通量 10650LM - 19170LM（见产品规格）。CCT 3000K。SDCM 3。显指>90。L90 60,000 小时。

安装
通过拉线悬挂在天花板安装板上。

接线
5 m 电缆接入端子排。

等级
IP20。

设计
Front Design 2024。

标准颜色
其他颜色可按要求提供。

产品规格 — Curve Cluster 金属灯罩 - 5 灯（15 灯罩）Small
POWER | LUMINAIRE FLUX | Shade D/mm | COLOUR | MODEL | | ART.
15x10W LED | 10650LM | 150 | White | Small | On/Off | 16054101-30
15x10W LED | 10650LM | 150 | White | Small | DALI | 16054101D30
15x10W LED | 10650LM | 200 | White | Small | On/Off | 16054301-30
15x10W LED | 10650LM | 200 | White | Small | DALI | 16054301D30
15x10W LED | 10650LM | 300 | White | Small | On/Off | 16054501-30
15x10W LED | 10650LM | 300 | White | Small | DALI | 16054501D30
15x10W LED | 10650LM | 150 | Green | Small | On/Off | 16054112-30
15x10W LED | 10650LM | 150 | Green | Small | DALI | 16054112D30
15x10W LED | 10650LM | 200 | Green | Small | On/Off | 16054312-30
15x10W LED | 10650LM | 200 | Green | Small | DALI | 16054312D30
15x10W LED | 10650LM | 300 | Green | Small | On/Off | 16054512-30
15x10W LED | 10650LM | 300 | Green | Small | DALI | 16054512D30

产品规格 — Curve Cluster 金属灯罩 - 5 灯（15 灯罩）Large
POWER | LUMINAIRE FLUX | Shade D/mm | COLOUR | MODEL | | ART.
15x10W LED | 10650LM | 150 | White | Large | On/Off | 16055101-30
15x10W LED | 10650LM | 150 | White | Large | DALI | 16055101D30
15x10W LED | 10650LM | 200 | White | Large | On/Off | 16055301-30
15x10W LED | 10650LM | 200 | White | Large | DALI | 16055301D30
15x10W LED | 10650LM | 300 | White | Large | On/Off | 16055501-30
15x10W LED | 10650LM | 300 | White | Large | DALI | 16055501D30
15x10W LED | 10650LM | 150 | Green | Large | On/Off | 16055112-30
15x10W LED | 10650LM | 150 | Green | Large | DALI | 16055112D30
15x10W LED | 10650LM | 200 | Green | Large | On/Off | 16055312-30
15x10W LED | 10650LM | 200 | Green | Large | DALI | 16055312D30
15x10W LED | 10650LM | 300 | Green | Large | On/Off | 16055512-30
15x10W LED | 10650LM | 300 | Green | Large | DALI | 16055512D30

产品规格 — Curve Cluster 金属灯罩 - 9 灯（27 灯罩）Small
POWER | LUMINAIRE FLUX | Shade D/mm | COLOUR | MODEL | | ART.
27x10W LED | 19170LM | 150 | White | Small | On/Off | 16056101-30
27x10W LED | 19170LM | 150 | White | Small | DALI | 16056101D30
27x10W LED | 19170LM | 200 | White | Small | On/Off | 16056301-30
27x10W LED | 19170LM | 200 | White | Small | DALI | 16056301D30
27x10W LED | 19170LM | 300 | White | Small | On/Off | 16056501-30
27x10W LED | 19170LM | 300 | White | Small | DALI | 16056501D30
27x10W LED | 19170LM | 150 | Green | Small | On/Off | 16056112-30
27x10W LED | 19170LM | 150 | Green | Small | DALI | 16056112D30
27x10W LED | 19170LM | 200 | Green | Small | On/Off | 16056312-30
27x10W LED | 19170LM | 200 | Green | Small | DALI | 16056312D30
27x10W LED | 19170LM | 300 | Green | Small | On/Off | 16056512-30
27x10W LED | 19170LM | 300 | Green | Small | DALI | 16056512D30

产品规格 — Curve Cluster 金属灯罩 - 9 灯（27 灯罩）Large
POWER | LUMINAIRE FLUX | Shade D/mm | COLOUR | MODEL | | ART.
27x10W LED | 19170LM | 150 | White | Large | On/Off | 16057101-30
27x10W LED | 19170LM | 150 | White | Large | DALI | 16057101D30
27x10W LED | 19170LM | 200 | White | Large | On/Off | 16057301-30
27x10W LED | 19170LM | 200 | White | Large | DALI | 16057301D30
27x10W LED | 19170LM | 300 | White | Large | On/Off | 16057501-30
27x10W LED | 19170LM | 300 | White | Large | DALI | 16057501D30
27x10W LED | 19170LM | 150 | Green | Large | On/Off | 16057112-30
27x10W LED | 19170LM | 150 | Green | Large | DALI | 16057112D30
27x10W LED | 19170LM | 200 | Green | Large | On/Off | 16057312-30
27x10W LED | 19170LM | 200 | Green | Large | DALI | 16057312D30
27x10W LED | 19170LM | 300 | Green | Large | On/Off | 16057512-30
27x10W LED | 19170LM | 300 | Green | Large | DALI | 16057512D30

技术参数 / 规格

• 系统功率：15x10W 或 27x10W LED
• 灯具光通量：10650 LM（15x10W）— 19170 LM（27x10W）
• CCT：3000K
• SDCM：3
• 显指：>90
• L90：60,000 小时
• 安装：通过拉线悬挂在天花板安装板上
• 接线：5 m 电缆接入端子排
• 防护等级：IP20
• 表面处理：灯臂和灯罩为喷漆金属；织物线缆（其他线缆颜色可按要求提供）
• 设计：Front Design 2024
• 可选灯罩直径：150 mm、200 mm、300 mm
• 型号：Small 和 Large；控制方式 On/Off 和 DALI
