正方形遮阳伞 CYGNUS QADRO

悬臂式丙烯塑料铝

Product overview

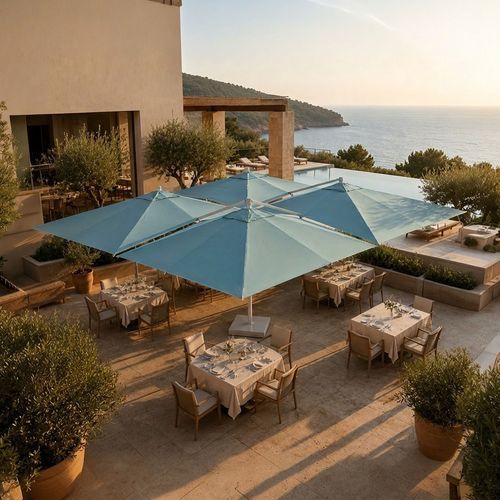

Cygnus Qadro is the cantilever parasol with four cross-shaped canopies that shades an entire space without a single pole among guests. Ideal for resort lunch service, club events, and luxury restaurant terraces.

Main highlights

• Four independent gas pistons: each arm opens and closes independently for on-demand coverage.
• No pole among the tables: 36 m² coverage arranged on a single central pole.
• Acrishade 260 gsm fabric: solution-dyed acrylic, UPF 50+, blocks ~98% of UV rays, integrated top airvent on each panel.

Mechanism
Open only the panels you need. Each arm is assisted by an independent gas piston for quick single-arm operation. The entire cross rotates 360° via a lever for positioning the covered area.

Key features

• Four cross arms on a single central upright (square section 110 × 110 mm).
• Commercial-grade aluminium frame; 8 ribs per panel (16×28 mm ribs), 32 ribs total.
• Perimeter reinforced stitching and integrated velcro closures to secure panels when closed.
• Top airvent (single opening without flap) on each panel to release wind pressure and reduce uplift risk.
• Coordinated finishes and fabric-frame combinations curated by the Maanta Style Centre.

What is included / compatible accessories

• Cygnus Qadro complete umbrella: central pole + 4 arms with pre-fitted canopies and mounting accessories (delivered in separate packs).
• Compatible protective cover (separately available) sized for the four-module configuration.
• Compatible anchoring/base options (sold separately): concrete anchor plate, wooden-floor anchor plate, in-ground anchor plate or minimum recommended ballast (100 kg) for free-standing installation.

Usage notes

• Designed for contract and hospitality use (restaurants, resorts, clubs, large terraces).
• Recommended to close panels when winds exceed recommended thresholds or for prolonged heavy rain; the fabric is water-repellent but not a total waterproof barrier under continuous heavy rain.
• Installation requires multiple people (recommended at least two, preferably three for upright and arms assembly); professional installation is advised for fixed anchors.

Customer assistance & documents

• Instruction manual and technical datasheet available as downloadable product guide (PDF).

Caractéristiques / spécifications techniques

• Model: Cygnus Qadro
• Available size: 6 × 6 m (total covered area 36 m² — four panels of 9 m² each)
• Opening: Push-open one-stop, gas piston assisted, independent for each of the 4 arms
• Fabric: Acrishade 260 g/m², solution-dyed acrylic, UPF 50+, water-repellent, single top airvent per panel, perimeter velcro closure
• Frame: Commercial-grade aluminium; 8 ribs per panel (16×28 mm ribs), 32 ribs total
• Central pole (upright): square section 110 × 110 × 2.0 mm
• Total open height: 260 cm
• Usable headroom beneath panels: 210 cm
• Coverage width: 600 × 600 cm
• Net weight: 83.8 kg
• Gross weight (packaged): 102.2 kg (approx.)
• Packaging: 5 parcels — 1 pole (295 × 17 × 17 cm) + 4 umbrella heads (242 × 29 × 17 cm each), total volume ~0.56 m³
• Recommended wind resistance (open): up to 25 km/h (minimum recommended base: 100 kg ballast or fixed anchoring)
• Colours / finishes: Graphite fabric with Anthracite frame; White fabric with Matt Anodizing frame
• Warranty: 7 years on frame · 3 years on fabric
