Product overview

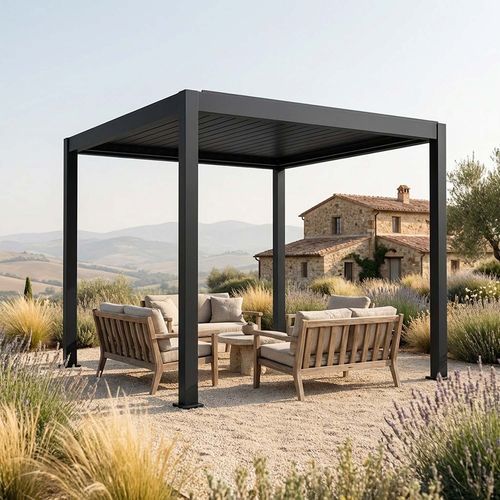

Lyra T6 is a bioclimatic pergola with motorised adjustable louvres that rotate from 0° to 100° and lock securely at any position. The structure is built in T6 ArmorAlloy™ (6063‑T6 aluminium, aerospace grade) and has been independently tested and certified by INTERTEK (EN 13659). Available in five standard sizes (9–24 m²) and two powder‑coat colours.

Key features

• Adjustable louvres 0°–100° (motorised) for precise control of light, shade and ventilation.
• T6 ArmorAlloy™ structure in 6063‑T6 aluminium: higher tensile strength for long life and reduced bending.
• INTERTEK EN 13659 tested: wind resistance up to 143 km/h (test) and operation rating up to 133 km/h; snow resistance tested to 160 kg/m² (operation rating 110 kg/m²).
• Solar DropSense™ rain sensor included (solar powered, ~6‑month autonomy, 80 m wireless range, all‑metal anti‑corrosion housing).
• SealDrive™ IP67 submersible DC24V motor (very low certified failure rate <0.025%).
• DuoGlow™ integrated bi‑colour perimeter LED lighting (3000K warm + 6000K cool; CRI 90); LEDs included in the price.
• Pre‑wired, plug & play connectors and DualChannel™ pole profile separating electrical and water channels.
• GripBolt™ M8 bolt‑lock fasteners for permanent captive tightening (low maintenance).
• Tuya app + 868 MHz remote control included for local and smart‑home integration.

Six exclusive technologies highlighted

• T6 ArmorAlloy™: heat‑treated 6063‑T6 aluminium; approx. 20% stronger than previous generation.
• DualChannel™ Post: dual internal channels in the pole for separate electrical and water routing (no external ducts).
• GripBolt™ M8: M8 bolt‑lock fasteners designed to remain tight over the product life with no re‑tightening.
• SealDrive™ IP67: motor certified IP67 (submersible), DC24V/30W, integrated into the profile; very low certified failure rate.
• DuoGlow™ CRI 90: integrated perimeter LED system with two selectable colour temperatures (3000K / 6000K) and high colour rendering (CRI 90).
• DropSense™ Solar: solar rain detection that closes louvres automatically in ~20 seconds; 6‑month autonomy and 80 m wireless link.

What's included

• Complete aluminium structure (poles, beams, louvres) pre‑coated in selected colour.
• Factory‑installed IP67 motors (DC24V/30W) and YZ21008‑01A transformer (IP65) housed inside the pole.
• Integrated bi‑colour IP67 perimeter LED lighting.
• Solar rain sensor (model YZ61001‑01SR‑FSK) factory paired.
• 868 MHz remote control and Tuya Smart app support (Wi‑Fi/Bluetooth); smart‑home compatibility (Google Home, Alexa, HomeKit via bridge).
• Base steel plates (4 plates for 3×3–4×4; 6 plates for larger formats), EPDM seals, stainless end caps, M8 GripBolt hardware, plug & play cabling and illustrated installation manual.

Available sizes & colours

• Sizes (standard): 3×3 m (9 m²), 3×4 m (12 m²), 3×6 m (18 m²), 4×4 m (16 m²), 4×6 m (24 m²).
• Colours: Matt Grey (RAL7016) and Matt White (RAL9016).

Caractéristiques / spécifications techniques

• Model / commercial name: Lyra T6
• Structure material: Aluminium 6063‑T6 (T6 ArmorAlloy™)
• Pole profile: 120 × 120 × 2 mm (double channel)
• Beam profile: 160 × 95 × 1.7 mm with integrated gutter
• Louvre profile: 160 × 33 × 1.4 mm (max length 3 m; double layer)
• Standard sizes: 3×3 m, 3×4 m, 3×6 m, 4×4 m, 4×6 m
• Minimum footprint: 3038 × 3038 mm (3×3 m)
• Maximum footprint: 4038 × 5858 mm (4×6 m)
• Pole height: 2,515 mm
• Wind resistance: 133 km/h operational; 143 km/h tested by INTERTEK
• Snow load: 110 kg/m² operational; 160 kg/m² tested by INTERTEK
• Motor: DC 24V / 30W, IP67 (submersible), stroke/force 165 mm / 800 N
• Transformer: YZ21008‑01A, IP65, housed in pole; outputs: 24VDC/50W (motor) + 24VDC/100W (LED)
• Certified motor failure rate: <0.025% (statistical result across test cohort)
• Perimeter LED: IP67, 2 × 2.7 W/m, selectable 3000K / 6000K, CRI 90
• Control: 868.35 MHz remote (range >200 m open field; up to ~30 m with obstacles) + Tuya Smart app (Wi‑Fi + Bluetooth)
• Rain sensor: model YZ61001‑01SR‑FSK, solar powered, 600 mAh battery, ~6‑month autonomy, 80 m wireless range, dimensions 105 × 68 × 34 mm, operating −20°C/+60°C
• Power supply required: 100–240 VAC, 50/60 Hz (single mains connection to transformer inside pole)
• Included as standard (no extra charge): solar rain sensor, bi‑colour perimeter LED, 868 MHz remote control, Tuya app access
• Anchoring: steel base plates 8 mm included (mechanical fixings depend on substrate and are not included)
• Coating: UV‑resistant powder coating
• Seals: EPDM gaskets (high UV and ozone resistance)
• End caps: stainless steel SUS304
• Louvre supports: glass fibre‑reinforced nylon
• Weight (approx.): 150–250 kg depending on size
• Structure warranty: 10 years; Motor warranty: 3 years
• Certification: INTERTEK report 240410081GZU‑001 (EN 13659 tests)
