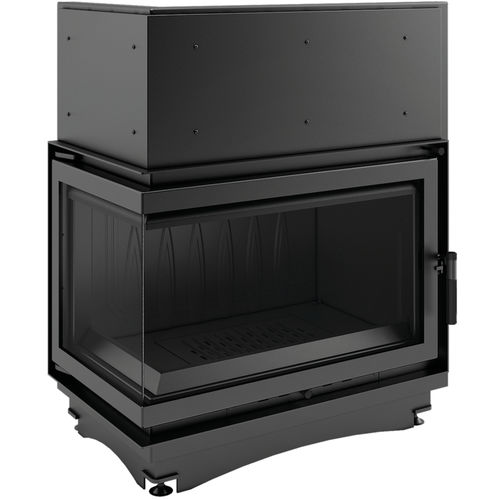

嵌入式转角壁炉 OLIWIA/L/BS
燃木铸铁

嵌入式转角壁炉
嵌入式转角壁炉
嵌入式转角壁炉
嵌入式转角壁炉
嵌入式转角壁炉
添加到我的收藏夹
添加到产品对比表


产品规格型号

类型
转角式
能源类型
燃木
材料
钢, 铸铁
风格
现代风格
加热功率

最少: 9 kW

最多: 23 kW

16 kW

管道直径

200 mm
(8 in)

重量

201 kg
(443.13 lb)

高度

97.3 cm
(38.3 in)

宽度

81.5 cm
(32.1 in)

深度

51.6 cm
(20.3 in)

产品介绍

MAXIMUM USE OF ENERGY Maximum use of heat due to densely spaced radiators and the wall of the insert made of high quality cast iron with a thickness of 8 mm. Increased heat exchange surface between the hot exhaust gases and the room due to the high flue. Combustion of fuel particles thanks to deflector, which extends the exhaust gas path. Increased efficiency of the insert through manual control of chimney draft by using the built-in damper. Manual control over the combustion process carried out by ash tray regulator. SAFETY AT THE HIGHEST LEVEL Front of insert is equipped with a heat-resistant ceramics that can withstand temperatures up to 800oC. Decorative fence helps to maintain the tidiness and protects against falling out of wood. CONVENIENT TO USE Ash drawer / ashtray, where the remains of burnt wood are gathered and grate for easy ash removal. Large combustion chamber, which allows to load a large quantity of fuel without the need for frequent refills. Reduced soot deposition through a system of pure glass (air curtain). An elegant and comfortable handle. The possibility of levelling the fireplace insert thanks to the adjustable legs. MODERN DESIGN Frame and door of the fireplace made of steel intended to work at elevated temperatures. A fireplace insert with two panes compiled with each other at angles (without brackets).
