嵌入式水疗浴缸 TILED 220

暗装正方形5人座

Overview

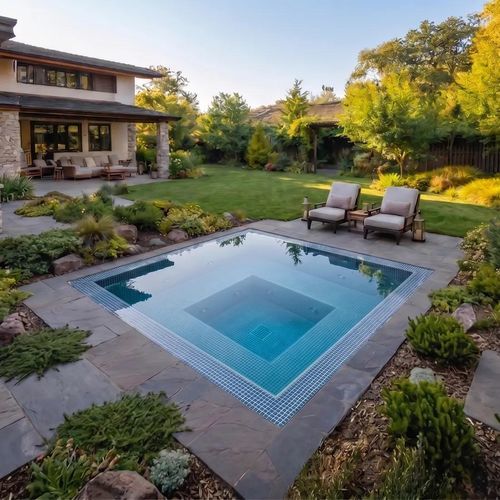

The TILED 220 recessed mosaic hot tub is designed to integrate wellness into a space in a natural, sophisticated and permanent way. Its 220 x 220 cm square design allows for elegant built-in installation, creating flawless visual continuity in both indoor and outdoor areas. With five spacious seats, it is designed for enjoying hydromassage with others without sacrificing individual comfort. The hydromassage system combines a total of 26 massage points, distributed between 16 water jets and 10 stainless steel air jets, working in balance to offer a relaxing and revitalizing experience. Its construction incorporates a metal structure, thermal insulation and an efficient filtration system with high-performance components, ensuring durability, reliability and easy maintenance. White LED lighting enhances the spa atmosphere, with the option of adding chromotherapy. Available in four colours and featuring a LOW AMP system to optimise energy consumption and simplify installation.

General Specifications

• Spa Dimensions (cm): 220 x 220
• Number of Seats (sitting / lying): 5 (5 / -)
• Water Volume (litres): 1,700
• Spa Weight (empty - full): 440 Kg / 2,140 Kg
• Required Power Low Amp (W) / (A) at 230 V: 3,600 W / 15.7 A
• Spa Voltage: 230 V / 400 V

Features

• Total massage points: 26 (16 water jets + 10 stainless steel air jets)
• Number of Spa jets: 16
• Spa with air injectors: 10
• Stainless Steel Jets/Nozzles: Yes
• White LED lighting (with optional chromotherapy)
• Metal structure and thermal insulation
• Efficient high-performance filtration system
• LOW AMP system for optimised energy consumption

Options / Finishes

• Spa Shell Colours / Interior mosaic finishes available: Bottega Steel, Bottega Anthracite, Bottega Limestone, Breccia Imperiale (interior mosaic finishes referenced also as Zinnia, Noisetier, Pierre, Bahamas)
• Type of hull finish: Mosaic
• LED Chromotherapy: Optional

Caractéristiques / spécifications techniques

• Model / Line: Tiled Line (built-in mosaic hot tub)
• Dimensions: 220 x 220 cm
• Seats: 5
• Water capacity: 1,700 L
• Empty / Full weight: 440 Kg / 2,140 Kg
• Hydromassage composition: 26 massage points = 16 water jets + 10 air injectors
• Stainless steel nozzles: Yes
• Power (Low Amp) @230 V: 3,600 W / 15.7 A
• Voltage options: 230 V / 400 V
• Construction: metal structure, thermal insulation, high-performance filtration
• Lighting: White LED (chromotherapy optional)
• Available finishes: 4 colours / mosaic shell finish
